Note: This tutorial will also work with the TDA2030 as long as you keep the supply voltage below ±18 V.

The TDA2050 is a great sounding chip amplifier with lots of power. In this tutorial, I’ll walk you through the amplifier design process as I build a 25 Watt stereo amplifier with the TDA2050. First, I’ll show you how to calculate the voltage and current requirements of your power supply, and show you how find a properly sized heat sink. Then, I’ll show you how to find the right values for all of the components in the circuit. I’ll also show you how to change the gain, and how to set the bandwidth of the amplifier. Finally, I’ll discuss PCB design and wiring the amplifier inside an enclosure. The information builds on itself, so it’s best to follow along in order. But if you want to jump ahead to a particular topic, here are links to the sections in this article:

The datasheet is a good reference to have when building any amplifier. I recommend reading it before starting on this project:

Circuit Basics PDF Icon TDA2050 Datasheet

WARNING!! THIS PROJECT INVOLVES HIGH VOLTAGES THAT CAN CAUSE SERIOUS INJURY OR DEATH. BE SURE TO USE PROPER SAFETY PRECAUTIONS, AND NEVER WORK ON A LIVE CIRCUIT.

You can also watch this video for an overview of the design process. At the end of the video I wire up the amp and play some music so you can hear what it sounds like:

What to Know Before Starting

Before you begin, you’ll want to get an idea of how much output power you want from the amplifier. You’ll also need to know the impedance of your speakers and the input voltage of your audio source. Be sure to check the TDA2050’s datasheet to find the absolute maximum ratings for these parameters, and design your amp to stay within the safe operating limits.

According to the datasheet, the TDA2050 can output 28 Watts into 4 Ω speakers with 0.5% distortion on a 22 V power supply. I’ll be powering 6 Ω speakers with my amplifier, so I’m going to aim for about 25 Watts output power. I’ll be using an iPhone as the audio source, which has a 1 V output voltage.

The first step is to figure out how much voltage and power you need from the power supply to get your desired output power.

Power Supply Voltage and Current

The TDA2050 can be powered from a split supply or single supply. The amplifier’s output power will be higher with a split supply, so that’s what I’ll use here.

Power Supply Voltage

Your desired output power and speaker impedance will determine how much voltage you need from the power supply. But before we can calculate the power supply voltage, we need to calculate the amplifier’s peak output voltage (Vopeak).

Peak Output Voltage

The peak output voltage can be found with this formula:

V_{opeak} = \sqrt{2\times R_{L}\times P_{o} }\\  \\R_{L} = Speaker\hspace{1mm}impedance\\  \\P_{o} = Average\hspace{1mm}output\hspace{1mm}power

The peak output voltage of my 25 Watt amplifier driving 6 Ω speakers will be:

V_{opeak} = \sqrt{2\times 6 \hspace{1mm}\Omega\times 25\hspace{1mm}W}\\  \\= \sqrt{300}\\  \\= 17.3\hspace{1mm}V

So with an output power of 25 Watts, the maximum voltage at the speakers will be 17.3 V.

Maximum Supply Voltage Needed by the Amplifier

Now you can find the maximum supply voltage (Vmax supply), which is the voltage your amp needs to get your desired output power. The supply voltage limit of the TDA2050 is ±25 V, so be sure not to exceed that.

The formula to calculate the maximum supply voltage is:

V_{max \ supply} = \pm( V_{opeak}+ V_{od})(1+Regulation)(1.1) \\  \\V_{opeak}= Peak \ output \ voltage\\  \\V_{od}= Voltage \ drop \ across \ the \ TDA2050 \ \Rightarrow 4 \ V\\  \\Regulation= Increase \ in \ voltage \ when \ transformer \ is \ unloaded\\  \\1.1= Variation \ in \ mains \ voltage \ (10 \ \%)

Regulation is the increase in transformer output voltage when there’s no load to draw current, which happens when the amplifier isn’t playing music. The exact value should be given in your transformer’s datasheet. The transformer I’ll be using has a regulation of 6%, so my maximum supply voltage is:

V_{max \ supply} = \pm(17.3 \ V+4 \ V)(1+0.06)(1.1)\\  \\=\pm(21.3 \ V \times 1.06 \times 1.1)\\  \\=\pm24.9 \ V

So, my power supply needs to deliver ±24.9 V for my amplifier to drive 6 Ω speakers at 25 Watts. The ± symbol means that the positive rail voltage is +25 V and the negative rail voltage is -25 V.

Maximum Supply Voltage Provided by a Transformer

The goal is to find a transformer that can output a maximum supply voltage close to the maximum supply voltage needed by your amplifier.

A transformer’s voltage rating only tells you its AC voltage output. The DC voltage you’ll get after the bridge rectifiers on the power supply convert AC to DC will actually be higher by a factor of 1.41. You’ll also need to account for surges in your mains supply, and the regulation of your transformer.

The maximum supply voltage you’ll get from a transformer can be calculated with this formula:

\\V_{max \hspace{1mm} supply}=(V_{transformer})(1.41)(1.1)(1+Regulation)\\  \\V_{transformer}=Transformer \hspace{1mm} voltage \hspace{1mm} rating\\  \\1.41=Voltage \hspace{1mm} increase \hspace{1mm} across \hspace{1mm} rectifier \hspace{1mm} diodes\\  \\1.1= Variation\hspace{1mm}in\hspace{1mm}mains\hspace{1mm}voltage\hspace{1mm}(10\hspace{1mm}\%)\\  \\Regulation= Increase\hspace{1mm} in\hspace{1mm} voltage \hspace{1mm}when \hspace{1mm}transformer \hspace{1mm}is \hspace{1mm}unloaded

I started with a transformer rating of 15 V AC to see if that would provide the maximum supply voltage needed by my amplifier:

\\V_{max \hspace{1mm} supply}=(15 \hspace{1mm} V)(1.41)(1.1)(1+0.06)\\  \\=24.7 \hspace{1mm} V

So a 15 V transformer will give me a maximum supply voltage of 24.7 V DC after the power supply. That’s really close to the 24.9 V maximum supply voltage needed for my amplifier, but now let’s calculate exactly how much output power I’ll get with it…

Amplifier Output Power from a Transformer’s Maximum Supply Voltage

This calculation is useful if you already have a transformer and want to see how much output power your amplifier will produce with it:

P_{o}=\frac{(\frac{V_{cc}}{(1+Regulation)(1.1)}-V_{od})^{2}}{2\times R_{L}}\\  \\V_{cc}=Maximum \ supply \ voltage \ from \ transformer\\  \\V_{od}= Voltage \ drop \ across \ the \ TDA2050 \ \Rightarrow 4 \ V\\  \\Regulation= Increase \ in \ voltage \ when \ transformer \ is \ unloaded\\  \\1.1= Variation \ in \ mains \ voltage \ (10 \ %)\\  \\R_{L} = Speaker \ impedance

The maximum supply voltage from a 15 V transformer is 24.7 V, so the output power I’ll get from my amplifier is:

P_{o}=\frac{(\frac{V_{max \hspace{1mm} supply}}{(1+Regulation)(1.1)}-V_{od})^{2}}{2\times R_{L}}\\  \\P_{o}=\frac{(\frac{24.7 \hspace{1mm} V}{(1+0.06)(1.1)}-4 \hspace{1mm} V)^{2}}{2\times 6 \hspace{1mm} \Omega}\\  \\=\frac{(\frac{24.7 \hspace{1mm} V}{1.166}-4 \hspace{1mm} V)^{2}}{12}\\  \\=\frac{(17.2)^{2}}{12}\\  \\=\frac{295}{12}\\  \\=24.6 \hspace{1mm} W

A 15 V transformer will give me 24.6 Watts of output power into 6 Ω speakers, and that’s close enough to my desired 25 Watts.

Transformer Power Needed by the Amplifier

Now we can determine how much power the transformer needs to supply the amplifier. Power is typically given as a VA rating in the transformer’s specifications. To calculate a minimum VA rating, we’ll first need to find the total power (Psupply) the transformer needs to supply the amplifier.

The total power depends on the maximum supply voltage you’ll get from the transformer, the amplifier’s peak output voltage, your speaker impedance, and the quiescent drain current (QDC) of the TDA2050 (90 mA):

P_{supply} = 2 \times V_{cc}(\frac{V_{opeak}}{\pi\times R_{L}}+QDC)\\  \\V_{cc}= Maximum \ supply \ voltage \ from \ transformer\\  \\V_{opeak}= Peak \ output \ voltage\\  \\QDC= Quiescent \ drain \ current \ \Rightarrow \ 90 \ mA \ (from \ datasheet)\\  \\R_{L}= Speaker \ impedance

So my 15 V transformer needs to supply at least:

P_{supply} = 2\times 24.7 \hspace{1mm} V(\frac{17.3\hspace{1mm}V}{\pi\times 6\hspace{1mm}\Omega}+0.09\hspace{1mm}A)\\  \\= 49.4\times (0.92+0.09)\\  \\=49.4\times 1.0\\  \\=49.4\hspace{1mm}W

Now we’ll use the total power to find a minimum VA rating for your transformer…

Convert Total Power to Transformer VA Rating

To find a minimum VA rating for your transformer, a general rule of thumb is to multiply the total power by a factor of 1.5.

For my 15 V transformer, the VA rating will need to be:

49.4 \ W \times 1.5 = 74.1 \ VA

This is the VA per channel. For a stereo amplifier we just multiply by two:

74.1 \ VA \times 2 = 148.2 \ VA

So anything over a 150 VA transformer will supply my amplifier with enough power. This good to know because if your transformer is under powered, the amp might clip or distort the audio at higher volumes.

Finding the Right Heat Sink Size

Complete TDA2050 Amplifier Design and Construction - Assembled PCBs Attached to Heat Sink

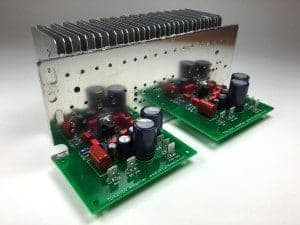

The two channels of my amplifier attached to a heat sink.

The TDA2050 needs to be attached to a heat sink or it will quickly overheat and get damaged. The size of the heat sink you need will depend on your maximum power dissipation and the thermal resistances in the path of heat flow away from the TDA2050.

Maximum Power Dissipation

The maximum power dissipation (Pdmax) is the amount of power the TDA2050 will dissipate as heat at the limit of it’s operation. Pdmax depends on the maximum supply voltage you’ll get with your transformer, and the impedance of your speakers:

P_{dmax} =\frac{(2\times V_{cc})^{2}}{2\times\pi^{2}\times R_{L}}\\  \\V_{cc}= Maximum \ supply \ voltage \ from \ transformer \\  \\R_{L}= Speaker \ impedance

According to the datasheet, the TDA2050’s absolute maximum rating for Pdmax is 25 Watts. If the Pdmax of your design is greater than 25 Watts, you’ll need to lower the supply voltage or increase the speaker impedance to prevent damage.

For the amplifier I’m building, the maximum supply voltage supplied by my transformer is ±24.7 V, and I’m driving 6 Ω speakers, so my Pdmax is:

P_{dmax} =\frac{(2\times 24.7 \ V)^{2}}{2\times\pi^{2}\times 6 \ \Omega}\\  \\= \frac{2440}{118.4}\\  \\=20.6 \ W

A Pdmax of 20.6 Watts is below the TDA2050’s absolute maximum rating of 25 Watts, so everything looks good so far.

Maximum Thermal Resistance of the Heat Sink

Now we can determine the maximum thermal resistance (in °C/W) of the heat sink you need to dissipate all of the power the TDA2050 produces. But before we can do that, we need to know the values of the three thermal resistances in the path of heat flow away from the TDA2050:

How to Design a Hi-Fi Audio Amplifier With an LM3886 - Thermal Resistance Diagram

θjc: The thermal resistance from the chip’s junction (the die) to the exterior of the plastic case.

θcs: The thermal resistance from the chip’s case to the heat sink.

θsa: The thermal resistance from the heat sink to the ambient air.

Heat dissipation will be more efficient when any of these are made smaller. We can’t do anything to get a lower θjc, because it depends on the construction of the TDA2050’s package. θcs can be lowered by using thermal paste between the chip and the heat sink. The thermal resistance of thermal paste is usually around 0.2 °C/W, but check the datasheet to find the exact value for the type you’re using.

The largest reduction of thermal resistance will come from your choice of heat sink (θsa). Heat sink thermal resistance is usually provided as a °C/W rating in the datasheet or advertising material. Heat sinks with a lower thermal resistance will dissipate more heat.

Use this formula to calculate the heat sink’s maximum thermal resistance necessary to dissipate the TDA2050’s Pdmax:

\theta_{sa} =\frac{[(T_{jmax}-T_{amb})-P_{dmax}(\theta_{jc}+\theta_{cs})]}{P_{dmax}}\\  \\T_{jmax}= Maximum \ junction \ temperature \ \Rightarrow \ 150 \ ^{\circ}C \ (from \ datasheet)\\  \\T_{amb}= Ambient \ temperature\\  \\ \theta_{jc}= Thermal \ resistance \ from \ junction \ to \ case\\  \\ \theta_{cs}= Thermal \ resistance \ from \ case \ to \ heat \ sink\\  \\P_{dmax}= Maximum \ power \ dissipation

  • The θcs of the TDA2050 is 3 °C/W.
  • Tjmax is the maximum junction temperature, or the temperature at which the thermal shutdown circuitry is enabled. Tjmax for the TDA2050 is 150 °C.
  • Tamb is the ambient temperature (in °C) while the amplifier is operating. A typical value is room temperature (25 °C).

The maximum thermal resistance of the heat sink for my amplifier with a Pdmax of 20.6 Watts is:

\theta_{sa} =\frac{[(150\hspace{1mm}^{\circ}C-25\hspace{1mm}^{\circ}C)-20.6\hspace{1mm}W(3\hspace{1mm}^{\circ}C/W+0.12\hspace{1mm}^{\circ}C/W)]}{20.6\hspace{1mm}W}\\  \\=\frac{60.7}{20.6}\\  \\=2.9\hspace{1mm}^{\circ}C/W

So I’ll need a heat sink rated less than or equal to 2.9 °C/W to ensure it will dissipate all of the power my amplifier produces.

Calculating the Amplifier’s Component Values

Now that all the power and heat sink requirements are figured out, let’s find the best values for the components in the circuit. I’ll use the schematic below, which is basically the same as the one in the datasheet, but with a few extra components to help filter noise:

How to How to Design and Build a TDA2050 Audio Amplifier - Circuit Schematic

If you click on the image you’ll be taken to the EasyEDA schematic editor where you can modify the circuit and change component values.

Here’s a diagram of the TDA2050’s pinout for your reference:

Complete TDA2050 Amplifier Design and Construction - TDA2050 Pinout Diagram

Minimum Gain

The gain of the TDA2050 should be set above 24 db to maintain stability, but there is also a minimum gain needed to get your desired output power. It depends on your input voltage, speaker impedance, and desired output power according to this formula:

A_{V} \geq\frac{\sqrt{P_{o}\times R_{L}}}{V_{in}}\\  \\A_{V}= Gain\\  \\V_{in}= Input\hspace{1mm}Voltage\\  \\R_{L}= Speaker\hspace{1mm}Impedance\\  \\P_{o}= Output\hspace{1mm}Power

I’ll be using an iPhone as the audio source for my amplifier. The iPhone has an output voltage of about 1 V, so to get 24.6 W output power, I’ll need to set the gain to at least:

A_{V} \geq\frac{\sqrt{24.6 \hspace{1mm}W\times 6\hspace{1mm}\Omega}}{1 \hspace{1mm}V}\\  \\ \geq\frac{\sqrt{148}}{1}\\  \\ \geq 12.2

This is expressed as the voltage gain (Vo/Vi), or the factor of amplification. To convert voltage gain to decibels gain, use this formula:

Gain_{db}=20\times\log_{10}{(\frac{V_{o}}{V_{i}})}\\  \\=20\times\log_{10}{(12.2)}\\  \\=21.7 \ db

So setting my gain above 21.7 db will ensure that I get 24.6 Watts of output power. But the minimum gain of the TDA2050 is 24 db, so I’ll need to set it to at least 24 db.

Set the Gain

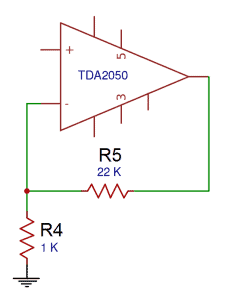

The values of resistors R4 and R5 set the gain of the TDA2050:

Complete TDA2050 Amplifier Design and Construction - R4 and R5 Set the Gain

High gain settings will cause distortion and low gain settings may not provide enough volume. If your minimum gain value allows for it, a good gain to use for home listening is around 27 to 30 db. This setting isn’t high enough to cause distortion and will give you a good range of volume.

The best resistors for R4 and R5 are metal film types with tight tolerances. A tolerance of 0.1% or less is ideal. It’s important to use close tolerance resistors to set the gain, especially if you’re building a stereo amplifier. If the resistance values between the two channels are off by a few Ohms, the gains will be different and one side will be louder than the other.

The gain is calculated with this formula:

A_{V} = 1+\frac{R5}{R4}\\  \\A_{V}= Gain \ (\frac{V_o}{V_i})\\  \\R4= Resistance \ of \ R4 \ in \ Ohms\\  \\R5=Resistance \ of \ R5 \ in \ Ohms

I’ll be setting the gain of my amplifier to around 27 db. I tried different resistor values with the formula above, and got close to my desired gain with R4 at 1 kΩ and R5 at 22 kΩ. These resistances will set my gain to:

A_{V} = 1+\frac{22000\hspace{1mm}\Omega}{1000\hspace{1mm}\Omega}\\  \\=1+22\\  \\=23\hspace{1mm}\frac{V_{o}}{V_{i}}\\  \\=27.2 \hspace{1mm} db

Which will work fine since 27.2 db is above the minimum gain I calculated earlier, and above the 24 db minimum of the TDA2050.

Balance the Input Bias Current

After setting the gain, the next step is to balance your amplifier’s input bias current. The input bias current is the difference in currents flowing to the non-inverting input (pin 1) and the inverting input (pin 2). This difference in current needs to be minimized since it will create a DC voltage at the inputs that will be amplified as noise.

The current at inverting input is determined by the resistance of R5. The current at the non-inverting input is determined by the resistances of R2 and R3 in series:

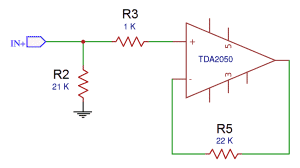

Complete TDA2050 Amplifier Design and Construction - Balancing the Input Bias Currents with R2, R3, and R5

In order to make the currents at each input the same, we set

R2+R3 = R5

For my amplifier, I already found a value for R5 when I set the gain. For R3, I started with an arbitrary value of 1 kΩ then rearranged the formula above to find a value for R2:

R2+R3 = R5\\  \\R2 = R5 -R3 \\  \\R2 = 22000 \hspace{1mm} \Omega - 1000 \hspace{1mm} \Omega\\  \\R2 = 21000 \hspace{1mm} \Omega

So a 21 kΩ resistor for R2 and a 1 kΩ resistor for R3 will balance the input bias current.

Set the Low End of the Amplifier’s Bandwidth at the Input

Capacitor C1 prevents DC from the audio source getting to the amplifier’s input. If DC is allowed to reach the input, it will get amplified along with the audio signal and create noise.

C1 also forms a resistor-capacitor (RC) high pass filter with R2 that defines the low end of the amplifier’s bandwidth:

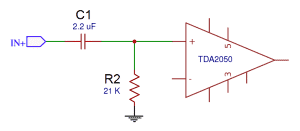

Complete TDA2050 Amplifier Design and Construction - Set the Low Frequency Cut Off at the Amplifier's Input

A filter’s cutoff frequency (Fc) is the frequency at which the filter starts to work. In a high pass filter, frequencies below the cutoff frequency are muted.

The cutoff frequency of this filter can be found with this equation:

F_{c}=\frac{1}{2 \times \pi \times R2 \times C1}\\  \\R= Resistance \ of \ R2 \ in \ Ohms\\  \\C= Capacitance \ of \ C1 \ in \ Farads

We already found a value for R2 when we balanced the input bias currents. To find a value for C1, we just need to define a cutoff frequency. Since the lower limit of human hearing is 20 Hz, the Fc should be well below 20 Hz so that audible bass frequencies aren’t muted.

The Fc equation above can be rearranged to find the value for C1 at a particular cutoff frequency:

C1=\frac{1}{2 \times \pi \times R2 \times F_{c}}

I went with an Fc of 3.5 Hz for my amplifier, but you can use slightly higher or lower values if you want. It may take some experimentation to find the perfect value for your ears, but just be sure to stay well below the lower limit of human hearing (20 Hz), or your amp’s bass response will be weak.

With an Fc of 3.5 Hz, the value of my C1 is:

C1=\frac{1}{2\times\pi \times 21000\hspace{1mm} \Omega\times 3.5\hspace{1mm} Hz}\\  \\=\frac{1}{461,814}\\  \\=0.0000022\hspace{1mm} F\\  \\=2.2\hspace{1mm}\mu F

C1 is directly in the input signal path, so it will affect your amplifier’s sound quality. For the best sound, use a polypropylene metal film or polypropylene metal film in oil capacitor.

Set the Low End of the Amplifier’s Bandwidth in the Feedback Loop

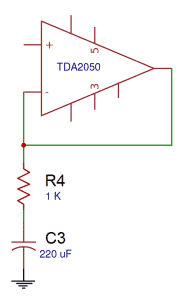

C3 and R4 form another high pass filter in the feedback loop:

Complete TDA2050 Amplifier Design and Construction - Set the Low Frequency Cut Off of the Feedback Loop

The cutoff frequency of this filter should be set 3 to 5 times lower than the cutoff frequency of the input high pass filter. If the cutoff frequency of this filter is higher than the filter at the input, low frequencies will be passed to the feedback loop filter that are below it’s cutoff frequency. This will create a DC voltage across C3 that will appear at the inverting input and get amplified as noise.

Even though the input filter sets the low end of the amplifier’s bandwidth, C3 still has an effect on the bass response. Smaller values of C3 will result in softer bass that has less punch, and larger values will make the bass tighter, with more impact.

Use the formula below as a starting point to find an ideal value for C3:

C3\geq\frac{\sqrt{2}\times(R2+R3)\times C1}{R4}

I already calculated values of R2, R3, R4, and C1, so my C3 should be greater than:

C3\geq\frac{\sqrt{2}\times(21000 \ \Omega+1000 \ \Omega)\times 0.0000022\ F}{1000 \hspace{1mm} \Omega}\\  \\ \geq\frac{0.068}{1000 \hspace{1mm} \Omega}\\  \\ \geq 0.000068 \ F\\  \\ \geq 68 \ \mu F

It’s going to be hard to find a 68 µF capacitor, so I’ll round up to 100 µF. Let’s see what the cutoff frequency would be with that:

F_{c}=\frac{1}{2 \times \pi \times 1000\hspace{1mm} \Omega \times 0.0001 \hspace{1mm} F}\\  \\=\frac{1}{0.628}\\  \\=1.59\hspace{1mm} Hz

Now lets check to see if 1.59 Hz is 3 to 5 times lower than the 3.5 Hz Fc of my input filter:

\frac{3.5 \hspace{1mm} Hz}{1.59 \hspace{1mm} Hz}\\  \\=2.2

It’s 2.2 times lower, so maybe we can do better with a 220 µF capacitor. The Fc with a 220 µF capacitor is 0.72 Hz.

\frac{3.5 \hspace{1mm} Hz}{0.72 \hspace{1mm} Hz}\\  \\=4.9

So a value of 220 µF for C3 sets the cutoff frequency of the feedback loop filter to 4.9 times lower than the cutoff frequency of the input filter. This will be just fine, so that’s what I’ll use.

Set the High End of the Amplifier’s Bandwidth

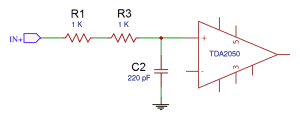

R1, R3, and C2 form a low pass RC filter at the amplifier’s input that defines the high end of the amplifier’s bandwidth:

Complete TDA2050 Amplifier Design and Construction - Set the High Frequency Cut Off at the Amplifier's Input

In a low pass filter, frequencies above the cutoff are muted. This filter has two functions. One, it sets the upper limit of the amplifiers’s bandwidth, and two, it filters high frequency radio and electromagnetic interference from the audio input.

The cutoff frequency of this filter should be greater than the 20 kHz upper limit of human hearing. It should also be lower than any radio broadcast frequencies that might be picked up by the input wires and traces.

The lowest radio broadcast frequency in the USA is AM at 535 kHz. I decided on a cutoff frequency of 350 kHz, which is well below 535 kHz and well above the 20 kHz upper limit of human hearing.

To find the value of C2 with an Fc of 350 kHz, I rearranged the cutoff frequency formula to solve for C2:

F_{c}=\frac{1}{2\pi (R1+R3)C2}\Rightarrow C2=\frac{1}{2\pi (R1+R3)F_{c}}\\  \\C2=\frac{1}{2\times \pi \times (1000 \hspace{1mm} \Omega + 1000 \hspace{1mm} \Omega)\times 350000 \hspace{1mm} Hz}\\  \\=\frac{1}{4.4 \times 10^{9}}\\  \\=2.27 \times 10^{-10}\hspace{1mm} F\\  \\=227 \hspace{1mm} pF

227 pF isn’t a common capacitor value. However, 220 pF would give an cutoff frequency of 362 kHz, so that will work fine as a substitute.

The Zobel Network

A Zobel network helps to prevent oscillation that can occur from the parasitic induction of speaker wires. It also acts as a filter to prevent radio interference picked up by the speaker wires from getting to the inverting input via the feedback loop.

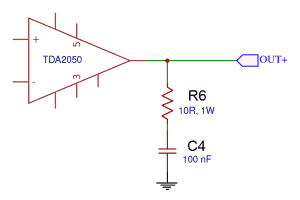

C4 and R6 form a Zobel network at the amplifier’s output:

Complete TDA2050 Amplifier Design and Construction - The Zobel Network

Since capacitors have a very low impedance at high frequencies, radio frequencies are shorted to ground via C4. R6 limits the high frequency current so there isn’t a direct short to ground, which could exceed the current limit of the TDA2050. The relatively low frequency audio current is blocked by C4, so it’s directed out to the speakers.

The cutoff frequency of the Zobel network can be calculated with:

F_{c}=\frac{1}{2 \times \pi \times R6 \times C4}\\  \\R6= Resistance \ of \ R6 \ in \ Ohms\\  \\C4= Capacitance \ of \ C4 \ in \ Farads

The datasheet gives values for R6 = 10 Ω and C4 = 100 nF, which gives an Fc of:

F_{c}=\frac{1}{2 \times \pi \times 10 \ \Omega \times (1 \times 10^-7 \ F)}\\  \\=\frac{1}{0.0000063}\\  \\=159 \ kHz

159 kHz is above the 20 kHz limit of human hearing and well below radio frequencies, so these values will work fine.

If the amplifier oscillates, R6 will be passing high currents to ground so it should have a power rating of at least 1 Watt. C4 should ideally be a metal film capacitor with a low ESR, and a voltage rating greater than the rail to rail output swing.

Power Supply Decoupling Capacitors

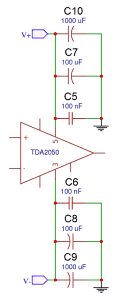

Complete TDA2050 Amplifier Design and Construction - Power Supply Decoupling Capacitors

C5 to C10 are the power supply decoupling capacitors. They act as a reservoir of current that can be quickly supplied to the amplifier when needed. There is one set of decoupling capacitors for each voltage supply pin.

The larger value decoupling capacitors (C9 and C10) provide reserve current during extended periods of low frequency output. Larger values will improve the bass response of the amplifier.

The smaller value decoupling capacitors (C6 and C5) can supply reserve current rapidly for periods of intense high frequency output. They also filter high frequency noise and electromagnetic interference from the power supply.

Decoupling capacitors also compensate for the inductance and resistance of the power supply wires and traces leading to the chip. Inductance and resistance inhibit current flow, and since the main power supply is relatively far away from the TDA2050, the effect can be significant. Locating the decoupling capacitors as close as possible to the chip’s pins will maximize current flow to the chip.

The best types of capacitors to use will have a lower equivalent series resistance (ESR) and equivalent series inductance (ESL).

Grounding the Amplifier

Grounding is one of the most important aspects of amplifier design. A poor grounding layout can be a major source of hum and buzzing. A good grounding layout keeps the low current audio input and signal grounds separate from the high current power supply and speaker grounds. If high currents are allowed to flow through the low current grounds, a DC voltage will develop in the low current wires that will show up at the input and get amplified as hum.

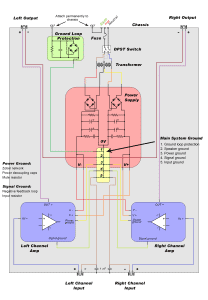

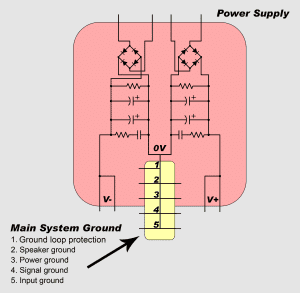

To keep the different grounds separate, we’ll create several different ground networks:

  • Audio input ground: For the ground wire of the audio input cable
  • Signal ground: For the input circuit: R2, C2, and C3
  • Speaker ground: For the speaker return wires
  • Power ground: For the power supply decoupling capacitors and the Zobel network

These grounds will connect to a group of terminals called the main system ground. The main system ground is connected to a ground loop protection circuit (I’ll explain more about this later), which then connects to the mains earth wire via the metal chassis.

The main system ground should be located as close as possible to the reservoir capacitors on the power supply:

How to Design a Hi-Fi Audio Amplifier With an LM3886 - Grounding Diagram

The ground networks are connected to the main system ground in a particular order so that high currents only flow through the low current grounds for a very short distance. As shown in the diagram above, the ground loop protection circuit connection is closest to the reservoir capacitors and the input ground connection is the farthest away.

PCB Layout and Design

I designed the PCB for my amplifier using EasyEDA’s online PCB design software. EasyEDA is a full suite schematic and PCB design software/manufacturing service that’s free to use and offers great prices on custom PCB manufacturing. To edit the layout, change component footprints, and order the PCB, click on the image below:

Complete TDA2050 Amplifier Design and Construction - PCB Layout

The component labels on the PCB match the labels in the schematic

This PCB is for a single channel, so if you’re building a stereo amplifier you’ll need to build two boards. If you want some tips on designing PCBs and a tutorial on using EasyEDA, check out our article How to Make a Custom PCB.

PCB Ordering

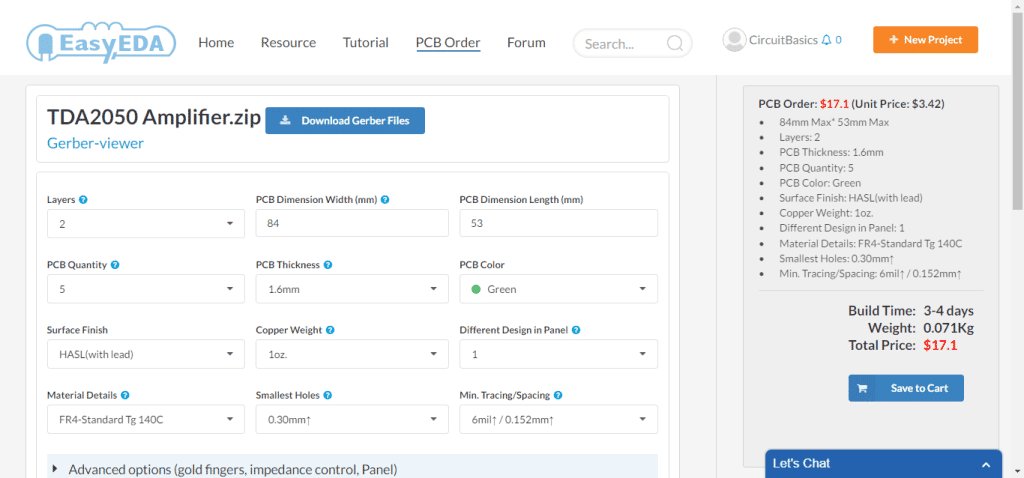

If you click on the “Fabrication Output” button in the PCB editor window, you’ll be taken to a page where you can order the PCB. You’ll also be given choices for copper thickness, PCB thickness, color, order quantity, and other parameters:

Complete TDA2050 Amplifier Design and Construction - Ordering the PCB

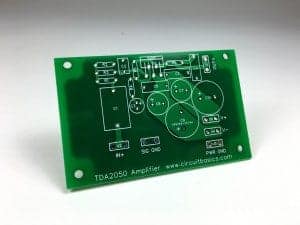

I ordered 5 PCBs and the cost came to $17.10 USD. Manufacturing and shipping took about 10 days. The boards came out great. The traces are routed precisely and all of the printing is very clear. Here’s one of the boards after manufacturing:

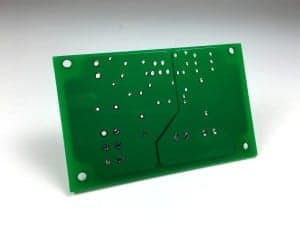

Complete TDA2050 Amplifier Design and Construction - PCB TopComplete TDA2050 Amplifier Design and Construction - PCB Bottom

PCB Design Tips

There are four basic principles I took into account when designing this PCB:

  • Current flowing through a conductor creates a magnetic field that can generate a current in a parallel conductor
  • Current flowing in a conductive loop creates a magnetic field, and a magnetic field generates a current in a conductive loop. The magnitude of the current is proportional to the area inside the loop
  • Inductance inhibits the flow of current. Long, thin traces have more inductance than short, thick traces
  • A capacitor in series with an inductor creates a resonant circuit

The traces leading to the non-inverting input and feedback loop have been routed far away from the power supply and audio output traces to prevent high currents generating currents in low current traces. If routing a low current trace near a high current trace is unavoidable, run them at 90° angles, but never parallel. If you put the terminals for the high and low current circuits on opposite sides of the PCB, it will be easier to route them far away from each other.

Any space between traces of the same circuit will create a conductive loop that’s susceptible to receiving or transmitting magnetic fields. To avoid this, I’ve routed the positive and negative power supply traces close to each other, and used ground planes on the bottom of the PCB. When traces are routed over a ground plane, the width of the loop is reduced to the thickness of the PCB.

Since the power ground and signal ground need to be kept separate, the bottom side of the PCB has two ground planes that are not connected electrically. One ground plane carries the power ground, and the other ground plane carries the signal ground. On the top side of the PCB, the power supply traces, output, and Zobel network are routed over the power ground plane. The input and feedback loop traces are routed over the signal ground plane.

A capacitor in series with an inductor creates a resonant circuit, which can cause oscillation. Inductance also inhibits the flow of current. To reduce the effects of inductance, it’s best to keep all traces as short as possible. This is especially important for the power supply decoupling capacitors, the feedback loop, and the Zobel network. They’ve all been placed as close as possible to the chip’s pins to shorten the trace length.

Building the Amplifier

Assembling the PCB is pretty straight forward. Here are the components and PCB before soldering:

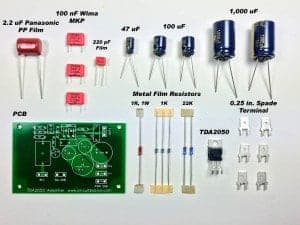

Complete TDA2050 Amplifier Design and Construction - Unassembled Amp

It’s usually easiest to solder the smaller components first, then work your way up to bigger components. I use a putty called Sticky-Tac to hold components in place on the top of the PCB while soldering from the bottom side.

If you can, use 63/37 eutectic solder instead of 60/40 tin lead solder. Eutectic solder has a smaller melting range which makes the solder bond set faster and gives a stronger bond. The melting range of 60/40 solder is fairly wide, and it become pasty at at the lower end of the range. If a component is moved in the pasty phase, the joint will be weak and may form a cold solder joint.

It’s also a good idea to use some fine grit sandpaper to remove any oxidation from the component leads before soldering.

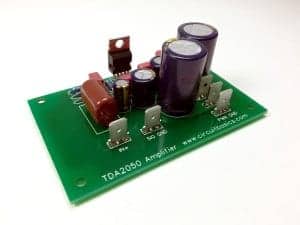

Here’s one channel of my amplifier after I soldered the components:

Complete TDA2050 Amplifier Design and Construction - Assembled Amp

The Amplifier Enclosure/Chassis

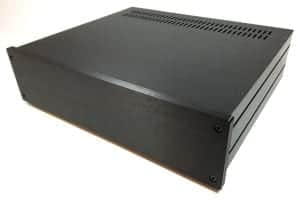

Metal enclosures are the most commonly used because they offer the best shielding from fluorescent light, radio frequency, and cell phone interference. It can be hard to find one that fits though. I recommend the enclosures from Hi-Fi 2000, a company in Italy that has beautiful enclosures available in lots of different sizes. The website is in Italian, but you can change the language to English. They also do custom printing, engraving, and drilling. I ordered their 330 mm X 280 mm Galaxy enclosure with a 10 mm black anodized aluminum front panel and it looks great:

Complete TDA2050 Amplifier Design and Construction - The Amplifier Chassis

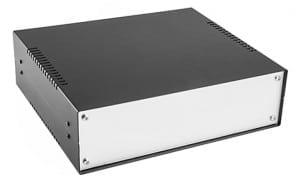

But if you’re on a budget, their economy line looks really good too. The Economica 280 mm x 250 mm model would fit the stereo TDA2050 amplifier too:

Complete TDA2050 Amplifier Design and Construction - The Chassis

Wiring the Amplifier

The diagram below shows how I wired my amplifier together inside the chassis:

How to Design a Hi-Fi Audio Amplifier With an TDA2050 - Master Wiring Diagram

Click on the image to view a larger version

To avoid interference from magnetic fields, try to keep the sensitive input and signal wires far away from the power supply wires, speaker output wires, transformer, AC mains wires, and rectifier diodes on the power supply.

To minimize the loop area, the following wires should be tightly twisted together for as long a distance as possible:

  • AC hot and AC neutral wires to transformer
  • 0 V and secondary voltage wires from transformer to power supply
  • V+, V-, and power ground wires from power supply to amplifier PCB
  • Speaker output and speaker ground
  • Audio input and audio input ground

Three power supply wires (positive, negative, and power ground) run to each amplifier PCB. These wires should be thick and as short as possible to minimize the inductance. I used 14 AWG, but anything larger than 18 AWG should be fine.

The audio input and signal ground wires don’t carry a lot of current so they can be thin gauge. Solid core 22 AWG works really well and is easy to twist together.

For fault current protection, the mains earth wire should be secured to the chassis with a bolt, lock nut, and a ring terminal. Make sure to scrape off any paint or anodization from the chassis to get a good electrical connection. All metal parts (like the heat sinks) should also be electrically connected to the chassis.

The audio input ground and speaker grounds are wired directly from the terminals on the chassis to the main system ground.

Audio input cables from the source can pick up stray electromagnetic interference. To filter this out, you can install a 1 nF capacitor at each input terminal, from the positive side to ground.

The Ground Loop Protection Circuit

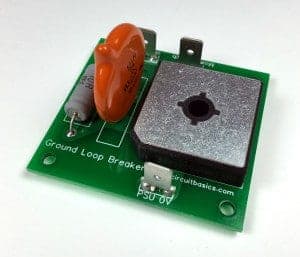

Complete TDA2050 Amplifier Design and Construction - Ground Loop Protection Circuit Assembled PCB

A ground loop is a current that flows from the audio source to the amplifier through the ground shield of the audio input cables. This current will be picked up at the amplifier’s input and produce an annoying hum. You can use an extra circuit placed between the main system ground and the chassis connection to break the ground loop current:

How to Design a Hi-Fi Audio Amplifier With an LM3886 - Ground Protection Circuit Schematic

NOTE: THIS CIRCUIT MAY NOT BE LEGAL IN YOUR AREA. PLEASE CHECK YOUR LOCAL ELECTRICAL CODES OR CONSULT AN ELECTRICIAN BEFORE USING A GROUND LOOP BREAKER

Under normal operating conditions, low voltage ground loop currents flow through the resistor (R1). The resistor reduces this current and breaks the ground loop. If a high current fault occurs, the fault current can flow through the diode bridge to earth. The capacitor filters any radio frequencies picked up by the chassis.

The main system ground connects to the ground loop protection circuit at the “PSU 0V” terminal. The ground loop protection circuit then connects to the chassis from the “Chassis” terminal. The connection to the chassis can be at the same bolt where the mains earth wire connects, or at another spot.

If you use a ground loop protection circuit, be sure to isolate all input and output connectors from the chassis. Otherwise, there will be a direct path from the main system ground to the chassis and the ground loop protection circuit will be bypassed entirely.

The ground loop protection circuit can be hard wired, but it’s a little neater to mount the components to a PCB:

How to Design a Hi-Fi Audio Amplifier With an LM3886 - Ground Protection Circuit PCB Layout

Click on the image to edit the layout, change component footprints, and order PCBs.

How Does it Sound?

Overall, the amp sounds great. The bass, mids, and treble are all very clear and well balanced. It also has plenty of power. There’s more than enough volume for listening in my living room. There is no hum or noise while the amp is powered on and plugged into the source.

While the sound quality of the TDA2050 may not be up to par with our Hi-Fi LM3886 amplifier project, it still sounds really good. If this is your first amplifier build, I’d suggest starting with our TDA2003 stereo or bridged amplifier projects since they’re quite a bit easier to build.

Be sure to leave a comment if you have any questions, and feel free to share this post if you know anyone that would find it useful! Thanks for reading…


Need an easy-to-use way to design circuits and layout PCBs?

Try EasyEDA, a free circuit design software that also offers low cost, high quality PCB manufacturing.
